Vibrating Screens / Vibration Screens
Mitool Equipments manufactures a complete range of industrial vibrating screens that classify, dewater, and size bulk materials with precision. Built for round-the-clock duty in steel works, collieries, quarries, mineral processing units, chemical and pharmaceutical plants, ceramic and glass factories, our linear-motion rectangular vibrating screens, dewatering screens, and grizzly bar screens are engineered for long service life with minimum downtime.
Screening performance depends on particle size distribution, shape, bulk density, flow characteristics, moisture, and loading method. Mitool engineers select the screen type, deck inclination, mesh aperture, and drive configuration based on each customer's actual feed characterisation — not from a generic catalogue. This application-engineered approach is what separates a screen that runs efficiently for ten years from one that needs rebuilding in two.
Types of Vibrating Screens manufactured by Mitool

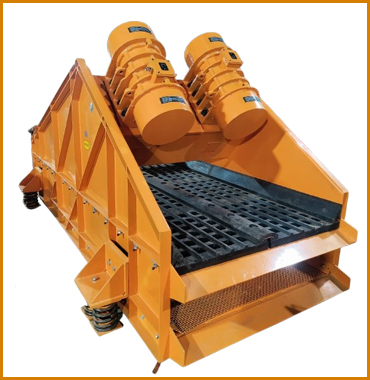

Linear motion rectangular vibrating screen
Driven by two unbalance motors mounted at a fixed angle, rotating in opposite directions, these screens produce a perfectly straight-line vibration. The result is high throughput with accurate sizing — ideal for steel mill scale recovery, sinter plant feed preparation, sponge iron product grading, and aggregate classification. Inclination is typically 0° - 15° downward, with vibration-isolating springs that protect surrounding structures.

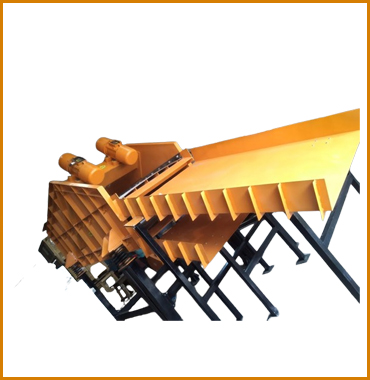

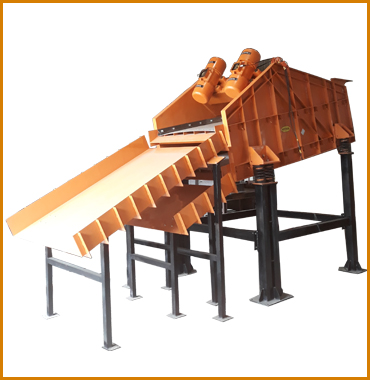

Grizzly bar vibrating screen
Heavy-duty parallel-bar screens designed to extract oversized coarse material from storage bins, hoppers, or run-of-mine ore before it reaches downstream crushers. Bars are spaced according to the cut-size required, and the entire deck is driven by unbalance motors to keep material moving and prevent bridging.

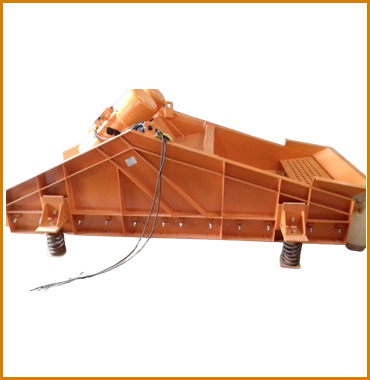

Dewatering vibrating screen
Specifically engineered to remove free moisture from slurries — used in coal washeries, sand-washing plants, and tailings handling. The deck slope is reversed (upward feed-to-discharge) to allow drainage time, and finer apertures combined with high-G vibration produce dry, conveyable material.
Vibrating screen specifications
| Parameter | Range |
|---|---|
| Screen type | Linear motion / Grizzly / Dewatering |
| Number of decks | Single / Double / Triple |
| Deck width | 600 mm - 3000 mm |
| Deck length | 1500 mm - 7000 mm |
| Capacity | 5 TPH - 500 TPH (application-dependent) |
| Mesh aperture | 0.5 mm - 100 mm |
| Inclination | 0° - 15° (linear), up-slope (dewatering) |
| Drive | Twin unbalance motors |
| Mesh material | MS / SS-304 / SS-316 / Polyurethane / Rubber |
| Voltage | 415 V, 3-phase, 50 Hz |
Industries & applications
- Iron & steel works : sinter plant feed sizing, mill scale recovery, sponge iron product classification
- Coal & coke : coal sizing, coke breeze recovery, dewatering after washing
- Quarries & mines : aggregate classification, ore feed grading, run-of-mine scalping with grizzly screens
- Cement industry : raw material sizing, kiln feed preparation, clinker grading
- Foundry industry : moulding sand reclamation, shot-blast separation
- Chemicals & fertilisers : granule classification, lump removal
- Pharmaceuticals & food : powder sizing, lump separation (sanitary SS construction)
- Ceramics, rubber, clay & glass : raw-material classification and finished-product grading
Key features
- Rugged design for long life : channel and box-section side plates, fully gusseted at vibration nodes
- Replaceable mesh decks : bolted or tensioned for quick change-over
- Spring-isolated mounting : minimises vibration transmission to supporting structure
- Low noise operation : balanced drive train reduces noise pollution in the plant
- Customisable feed and discharge : side, end, or central feed; multi-fraction discharge chutes
Why choose Mitool's vibrating screens
- Application-specific design : feed characterisation done before screen sizing — no generic substitution
- Heavy-duty drive components : unbalance motors are our Own Make, or with European brands, sized with safety factor
- Quick-change mesh systems : tension or bolt-down options, reduces shutdown time during deck change
- Engineered noise & vibration isolation : neighbour-friendly installations even in mixed-use industrial zones
- After-sales support : pan-India service network with spare parts inventory at Ambernath
Frequently Asked Questions
A. Linear motion screens use two counter-rotating unbalance motors to throw material in a straight line — best for accurate sizing and heavy duty.
A. Selection depends on feed rate, particle size distribution, bulk density, moisture content, and the cut points required. Share these details and Mitool's engineering team will recommend the screen type, deck count, mesh aperture, and drive size.
A. A grizzly screen scalps oversized material from a feed stream before it reaches a crusher. The parallel-bar deck lets fines fall through while oversize is conveyed off the end — protecting downstream crushers from being overloaded by oversized lumps.
A. Yes — full SS-304 or SS-316 construction is available, with polished surfaces and sanitary clamps for the food, pharma, and chemical sectors.
A. Yes. Mitool stocks replacement mesh in MS, SS, polyurethane, and rubber, in standard apertures. Custom apertures are made-to-order within 2-3 weeks.
